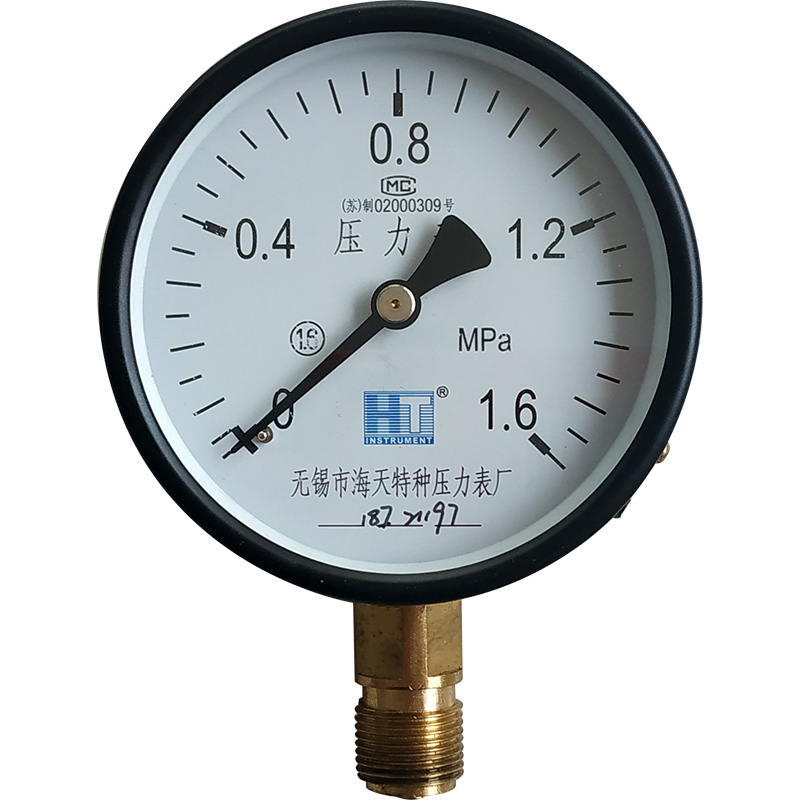

Y Series Standard Pressure Gauge, Copper Alloy

Product Desctription

Y series ordinary pressure gauge is suitable for the pressure measurement of gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts

Structure Principle

The measuring system of the instrument is composed of a connector (copper alloy HPB59-1), a bourdon tube

(phosphor copper QSn4-0.3) and a transmission mechanism (copper alloy). The pressure

value is indicated by a 270 degree rotation of the pointer on the core.

Applications

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts

Pneumatics

Heating and air-conditioning technology

Medical engineering

Product Features

Reliable and cost-effective

Both back mount and lower mount (radial) are available

Measurement unit could be bar, psi...etc. as per customer request

Copper alloy

Specifications

Model Y40 Y60 Y100 Y150 Y200 Y250

Nominal Size φ40 φ60 φ100 φ150 φ200 φ250

Fitting Thread M10×1、G1／8＂、ZG1／8＂ M14×1.5、G1／4＂、ZG1／4＂、1／4NPT、G3／8＂、ZG3／8＂ M20×1.5、ZG1/2＂、G1/2＂、1/2NPT、G3／8＂、ZG3／8＂

Accuracy Class ±2.5% ±1.5%(±1.6%)

Measuring Range (MPa) 0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6,
0～2.5,0～4,0～6,0～10,0～16,0～25 -0.1～0，-0.1～0.06，-0.1～0.15，-0.1～0.3，-0.1～0.5，
-0.1～0.9，-0.1～1.5，-0.1～2.4；
'0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6,
0～2.5,0～4,0～6,0～10,0～16,0～25,0～40,0～60,0～100 0～0.1,0～0.16,0～0.25,0～0.4,0～0.6,0～1,0～1.6,
0～2.5,0～4,0～6,0～10

Free samples are available for you try!
